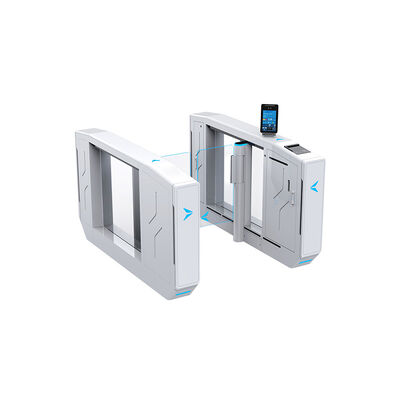

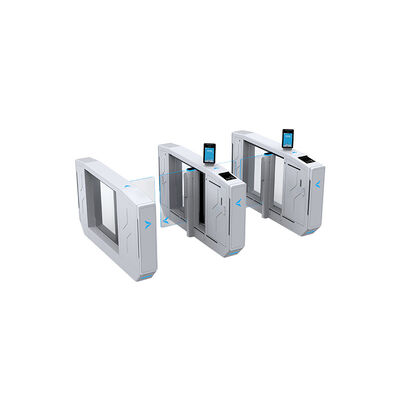

The M3621 Turnstile Gate is engineered for high-security super office building entrance and exit, featuring advanced access control technology and robust construction for reliable performance in demanding environments.
| Parameter | Specification |
|---|---|
| Size | 1800 × 210 × 1020 (mm) |
| Chassis | Top cover: 2.0mm cold roller with power coated Housing: 2.0mm cold roller with power coated Filling Panel: 10mm |
| Movement | Mechanism: Servo Speedway Door panel: 10mm Pass Lane: 600-900mm |
| Electronic Control | Control board: Servo standard board + driver board + logic board Motor: Brushless servo 40:1 100W IR sensor: Light Curtain 64 Points Air switch: 2P |
| Power Supply | 24V 500W / 12V 150W / 12V 3A |
| Accessories | Connection cable: 5m 2×1.0m² RVV Network cable: 5m Both ends with crystal tips |
| Package | Pearl cotton: Foam liner Cardboard box: 1860 × 270 × 1080 |
