ترايبود الباب الدوار
Created with Pixso. Durable SUS304 Access Control Tripod Turnstile Three Arm Gate ES1216

Durable SUS304 Access Control Tripod Turnstile Three Arm Gate ES1216

الاسم التجاري: Turboo
رقم الطراز: ES1216
الـ MOQ: 1 جهاز كمبيوتر
السعر: negotiable
وقت التسليم: 7-15 يوم عمل
شروط الدفع: الاعتماد المستندي، تي/تي
معلومات مفصلة
مكان المنشأ:
الصين
إصدار الشهادات:
CE, ISO9001,FCC,RoHS,etc.
مقاس:
1400*200*980 مللي متر
مادة:
الجزء العلوي δ=1.2 مم/الجسم δ=0.9 مم SUS304
عرض التمرير:
550 ملم
مزود الطاقة:
24 فولت 50 واط
المراقب المالي:
لوحة قياسية بثلاثة بوابات لفة
آلية:
باب دوار ضيق نصف أوتوماتيكي مضاد للرجوع (مع المثبط الهيدروليكي)
مستشعر الأشعة تحت الحمراء:
6 أزواج
تفاصيل التغليف:
حزمة حالة خشبية
القدرة على العرض:
1000 وحدة شهريا
إبراز:

SUS304 tripod turnstile gate,durable three arm turnstile,access control tripod turnstile

,

durable three arm turnstile

,

access control tripod turnstile

وصف المنتج

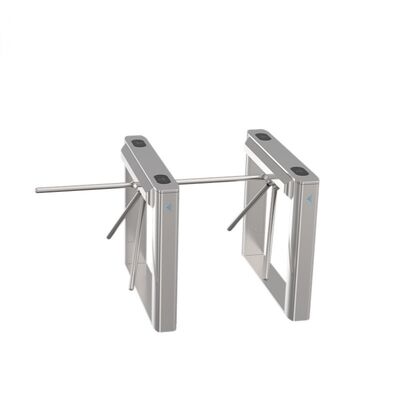

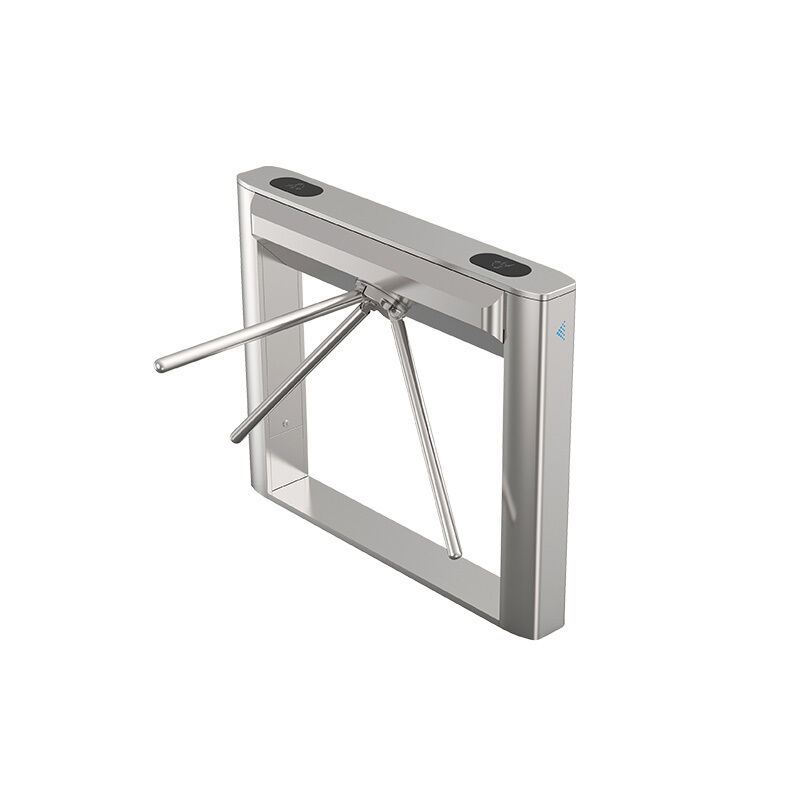

Durable SUS304 Access Control Tripod Turnstile Three Arm Gate ES1216
The ES1216 tripod turnstile gate provides a perfect balance of reliability, efficiency, and affordability for pedestrian access control.
Product Features
  • Reasonable and reliable design with low noise, smooth operation, and long service life
  • Anti-tailgating and anti-reverse pass protection functions
  • Configurable card memory settings with or without memory functions
  • Automatic reset function - returns to locked state if not passed within set time
  • Infrared anti-pinch protection during gate opening and operation

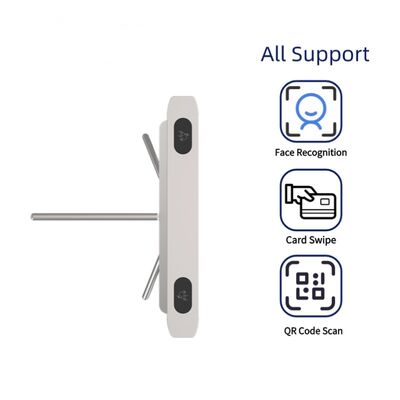

  • Compatible with IC, ID cards, scanning, and face recognition systems
  • Two operational modes: open or closed configurations
  • Multiple working modes including two-way and one-way card reading
Size Drawing
Durable SUS304 Access Control Tripod Turnstile Three Arm Gate ES1216 0
Technical Specifications
Size 1400 × 200 × 980 (mm)
Material SUS304 Housing 0.9mm + Top cover 1.2mm
Movement Narrow semi-automatic anti-passback tripod turnstile with Hydraulic Damper
Pass width: 550mm
Electronic Control Three roll gate standard control board
Power Supply 24V 50W
Pass Rate 35-50 persons/minute
IP Rating IP4X
Humidity ≤90% No condensation
Installation Examples
Durable SUS304 Access Control Tripod Turnstile Three Arm Gate ES1216 1
